How to Load a Verge Ag Guidance export in a Trimble GFX/TMX monitor through Precision IQ

How to Load a Verge Ag Guidance export in a Trimble GFX/TMX monitor through Precision IQ

How to load the Setup file to the monitor through the Precision IQ app:

  1. Create an export the Path Plan from Launch Pad
  2. Copy the extracted folder (un-ziped) (AgGPS or AgData) to the root directory of the USB to transfer to the monitor
  3. With the system powered up insert the USB

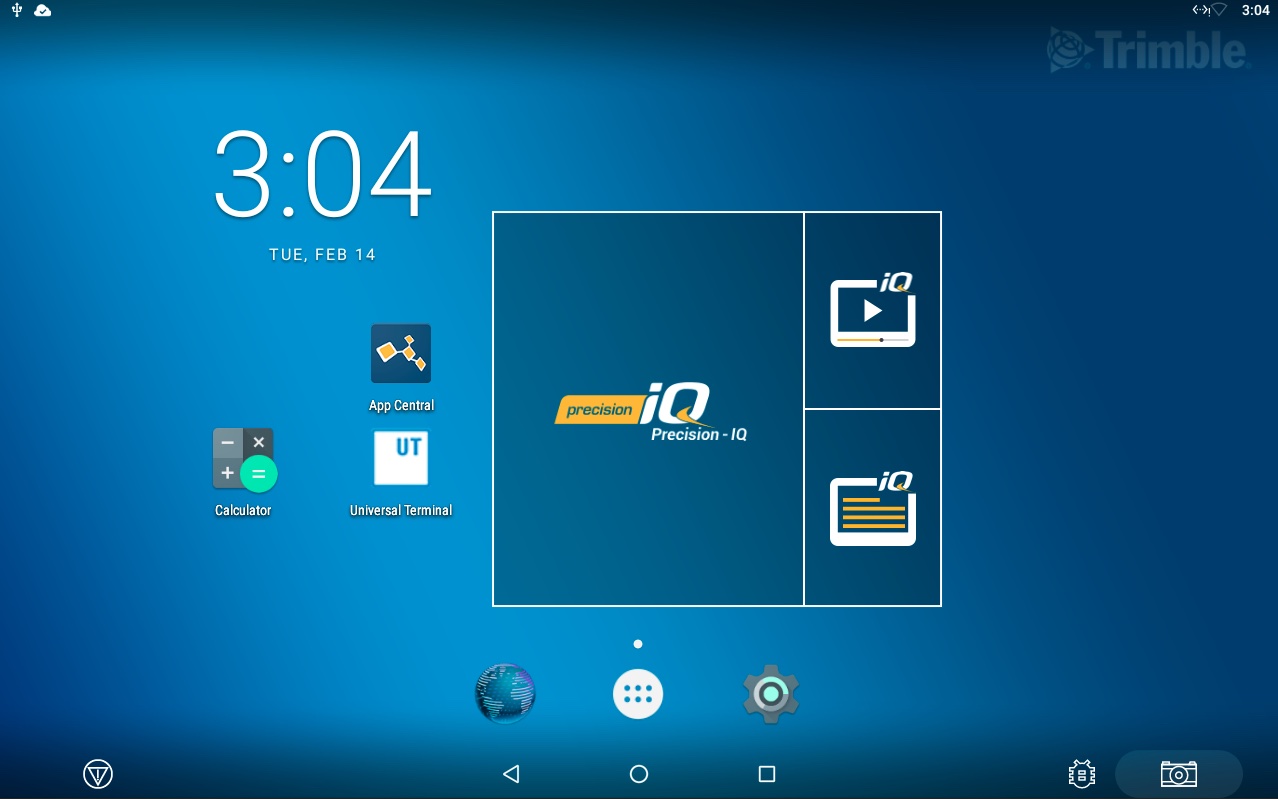

  4. Click on the Precisoin IQ app

  5. Click on "Data Transfer"

  6. Select the data to be copied in the right column
  7. Click Copy to copy the data from the USB to the internal storage on the monitor

How to Select a Field in the monitor that was loaded

  1. From the main Precision IQ screen select the Field tile
  2. Select the Filter Icon if you are not seeing the Fields that were loaded, they may be under a different Grower, Farm or Field that the list is currently filtered to
  3. Select the Field you would like to use

  4. To verify the lines are available click on the Field Settings Button
  5. Click on the Guidance Patterns Tab
  6. Select the Guidance you would like to use and activate.

Examples of Guidance Export options

  1. Export AB Guidance

  2. Export AB Guidance and Headlands

  3. Export Inner Tracks and Headlands



Note: Trimble 750 and 2050 both run the Precision IQ app.  The 2050 also allows the user to use the FMX Plus App to run guidance
