The procedure below shows how to load a setup file directly into a Viper 4/4+ monitor from the ISO XML export in Launch Pad.


How to load the Setup file to the monitor directly:

1. Create and export the Path Plans from Launch Pad

2. Copy the extracted folder (Un Zipped) to the root directory of a USB to transfer to the monitor (Taskdata Folder)

3. Insert USB: Plug the USB drive into the port on the Viper 4 display.
4. Access File Manager: On the Viper 4, go to the Administrator/User panel, then select File Manager.

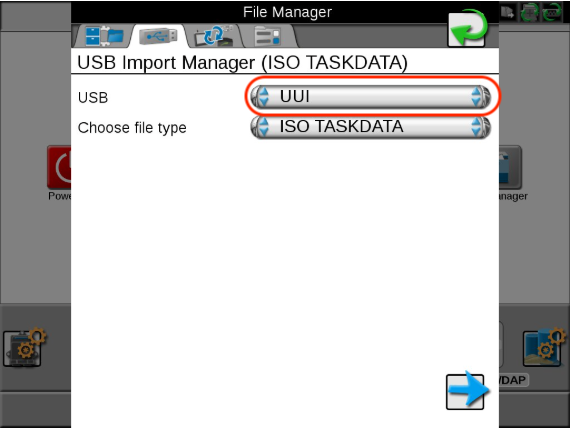

5. Select USB Import tab and select your USB drive from the dropdown menu.

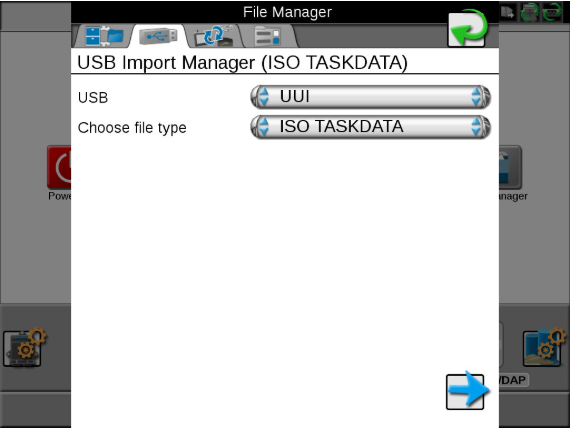

6. Choose File Type of TASKDATA and click the next arrow

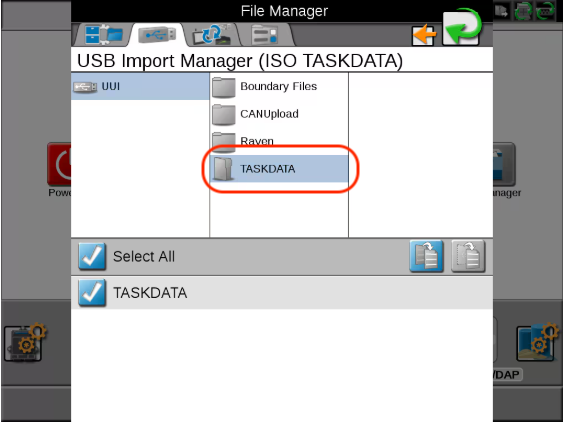

7. Select the TASKDATA folder to be copied to the Viper and press the Copy button (two pieces of paper icon).

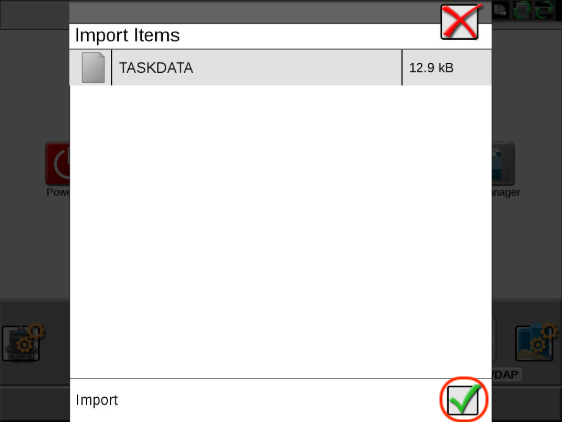

8. Confirm Import, A screen will show items to import; press the Green Checkmark to confirm.

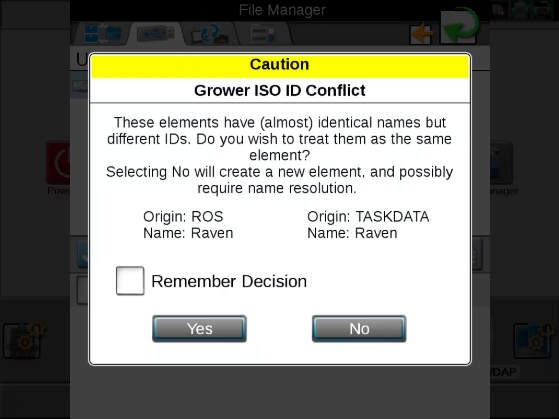

9. If a conflict occurs, select Yes to merge or No to create a new structure.


Loading/Starting a Job from the imported Taskdata

1. Navigate to the Administrator and select "Start Job".

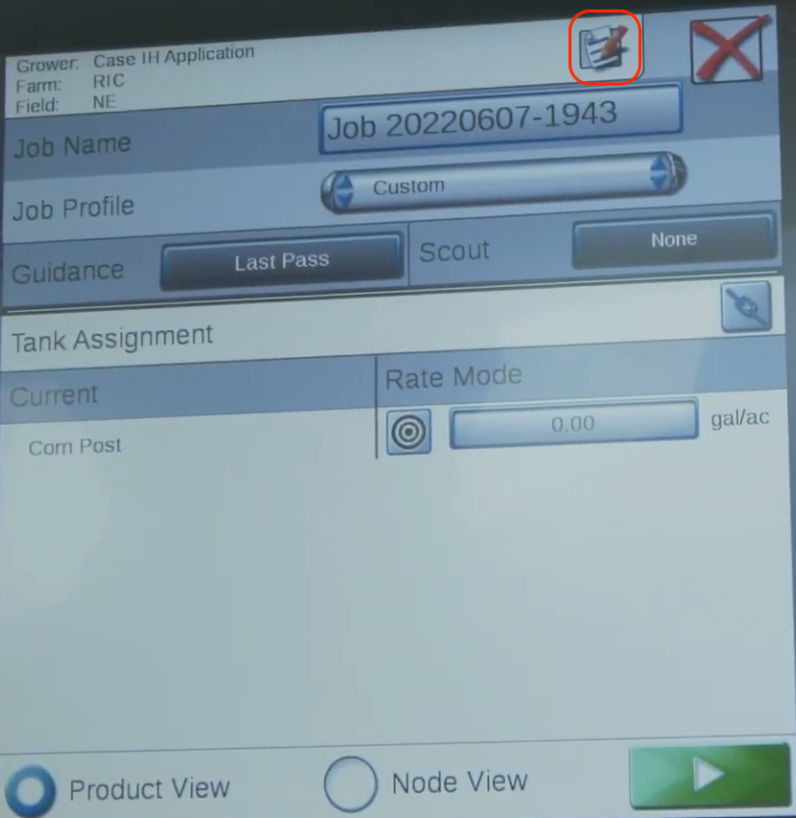

2. Select the "Edit" button in the u on the profile screen select Grower, Farm, and Field that was loaded from the Taskdata.


3. Start: Tap the green "Play" button in the bottom right to load the run screen.

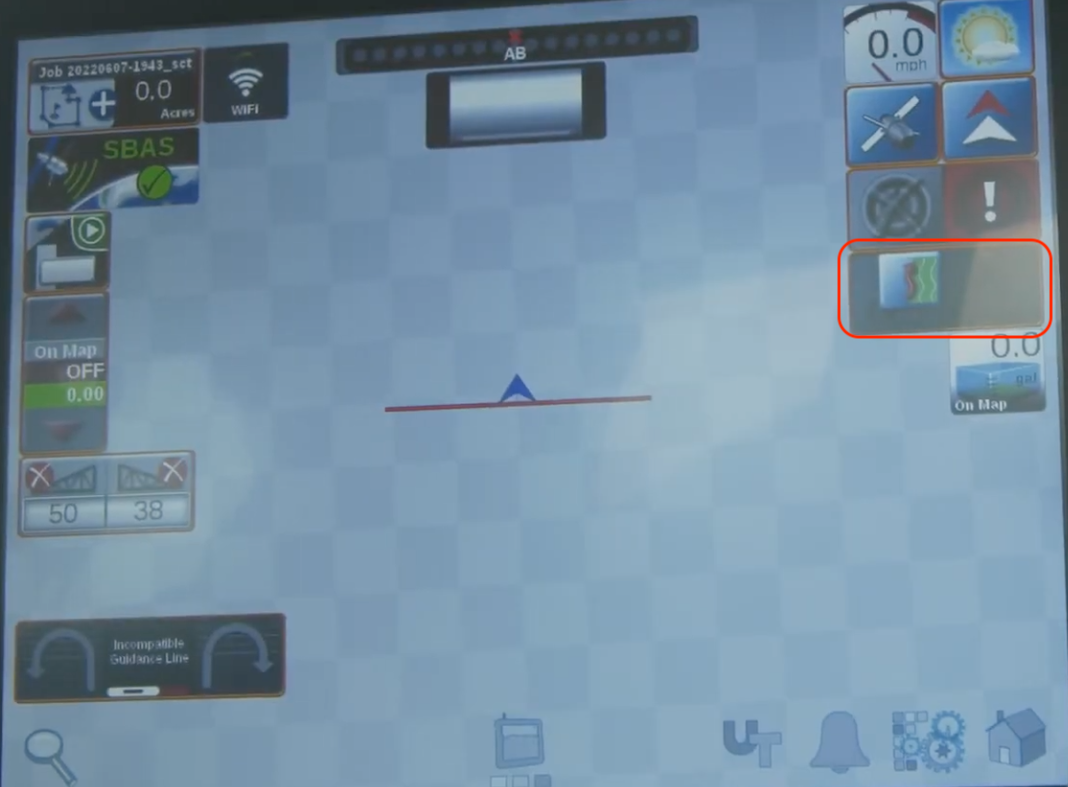

4. On the Main run screen press and hold the Guidance Line button

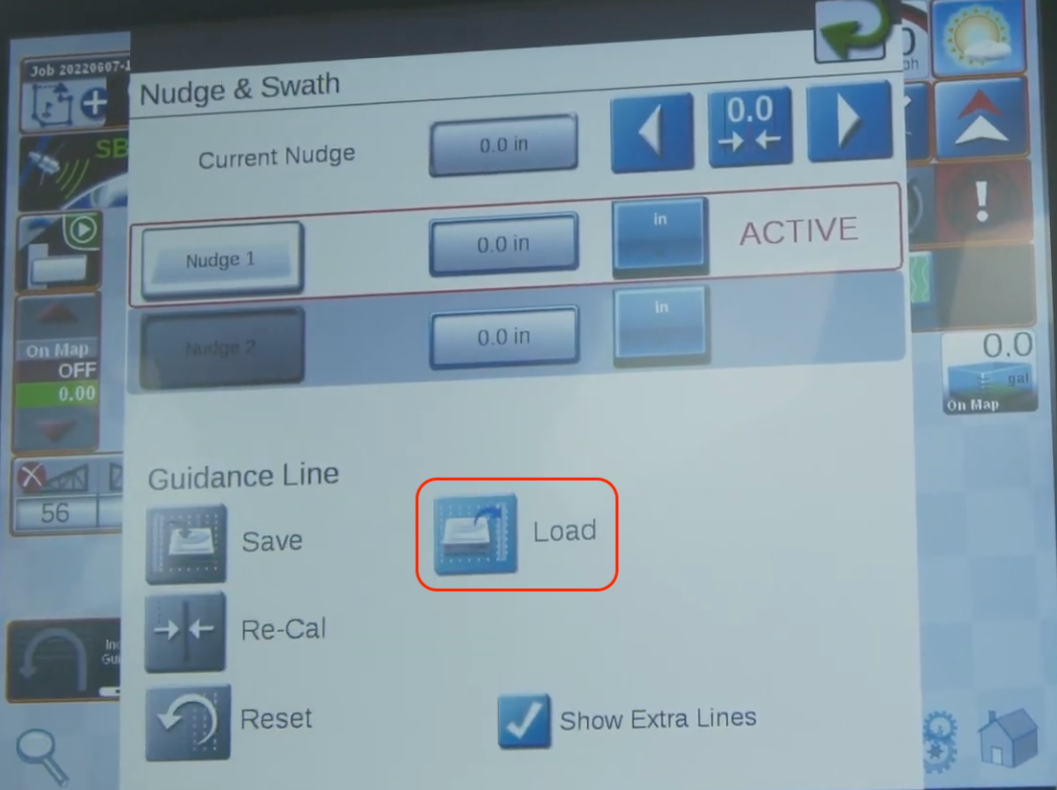

5. Select Load

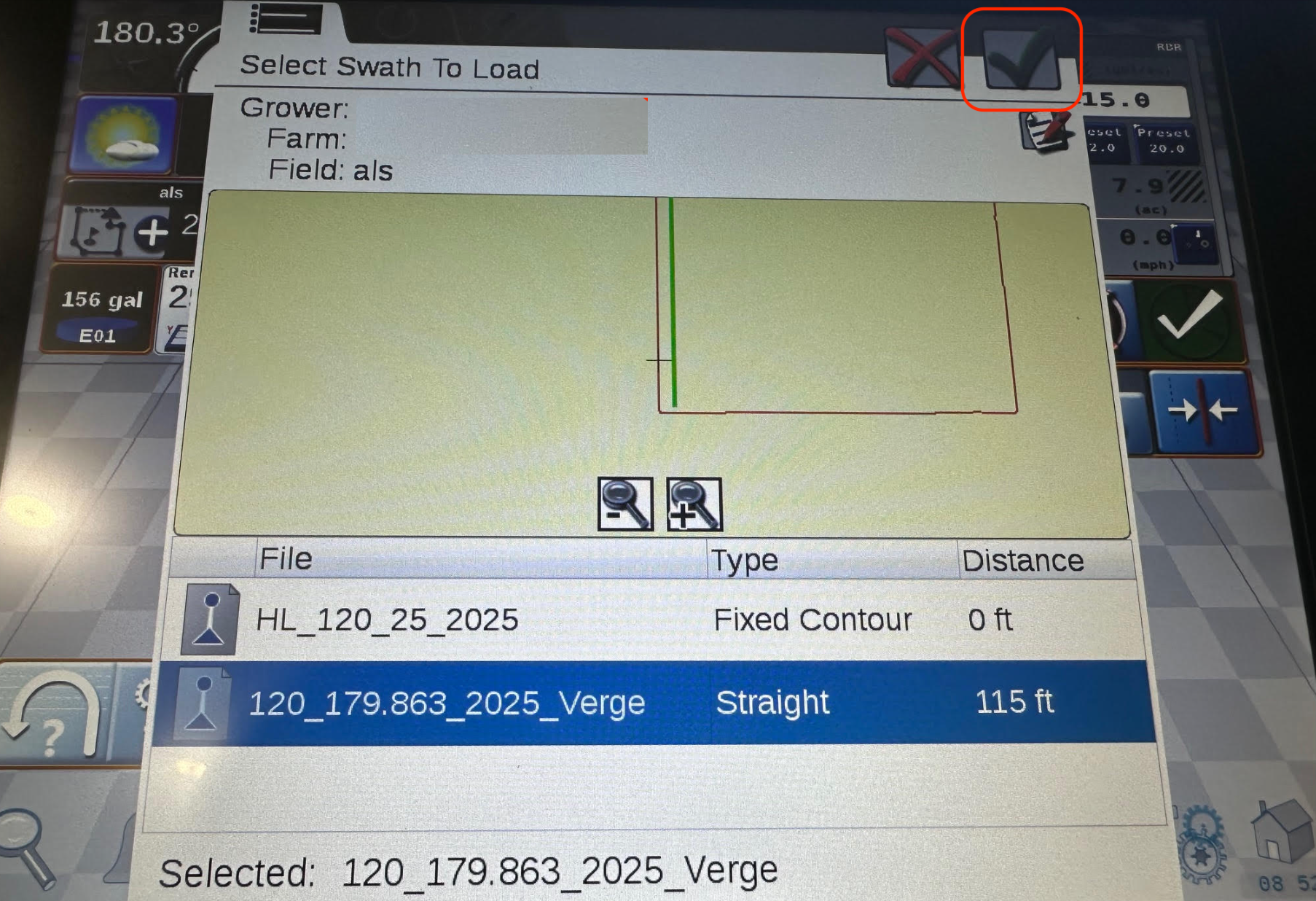

6. Select Guidance line to load and click the Green check in the upper right

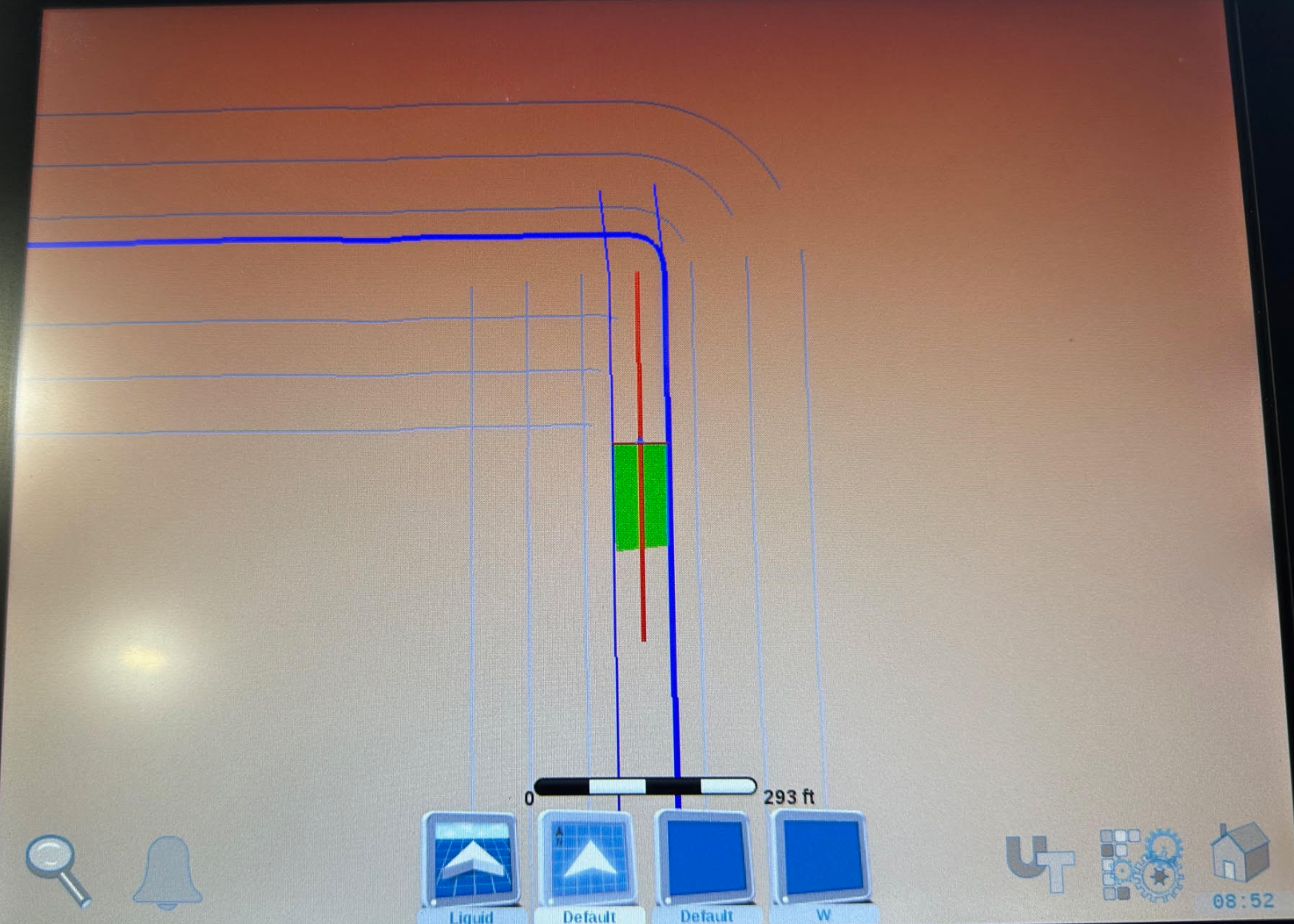

7. Guidance line will show on the map
