Please follow the steps below to create a Path Plan on Multiple Fields. This can only be accomplished from the Home Page

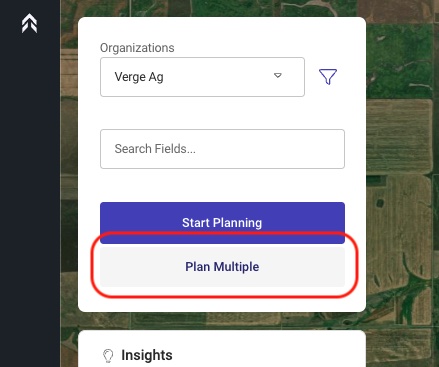

  1. From the Home page select Plan Multiple

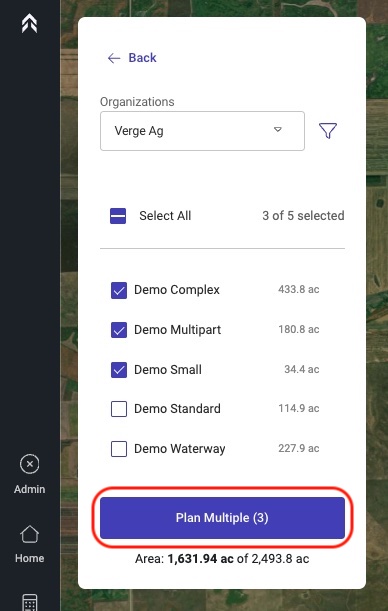

  2. Select the check box next to the fields you would like to create a Path Plans for

  3. Click the “Plan Multiple” button

  4. Confirm Boundaries on each field and click Next.
    - This would allow you to use an alternate boundary if you have more than one on a field.

  5. Enter the a name for the Path Plans

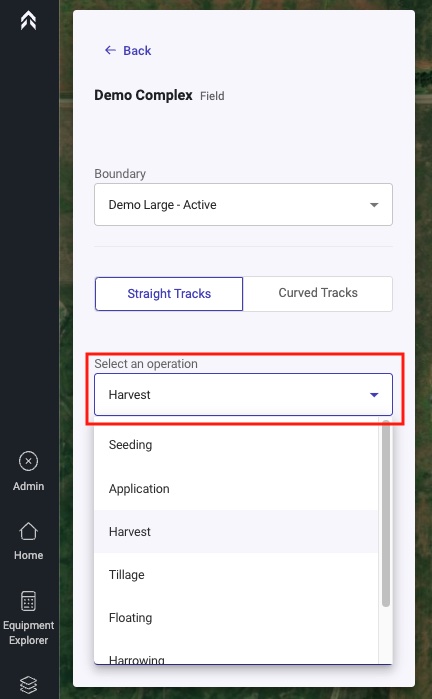

  6. Select the operation type

  7. Select the equipment from the Drop down
    - This will display multiple pieces of equipment if the user has multiple items under the same operation type

  8. Enter the Swath Width
    - A custom width can be entered to be used during the generation of the Plan

  9. Select number of Headland/Perimeter passes

  10. Select the number of Interior Passes. (Number of passes around internal obstacles)

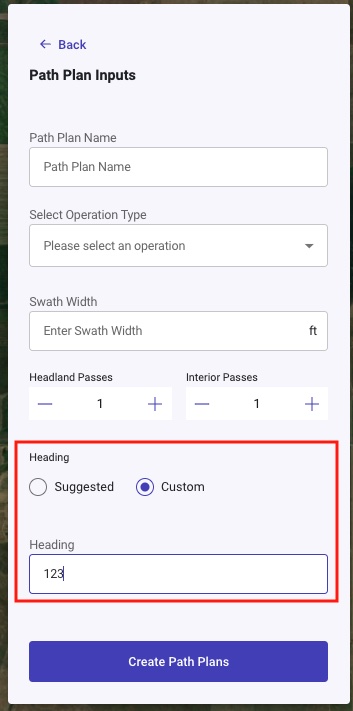

  11. Heading: There is an option to use our Suggested heading for the plans or users can enter a custom heading to set all fields to.

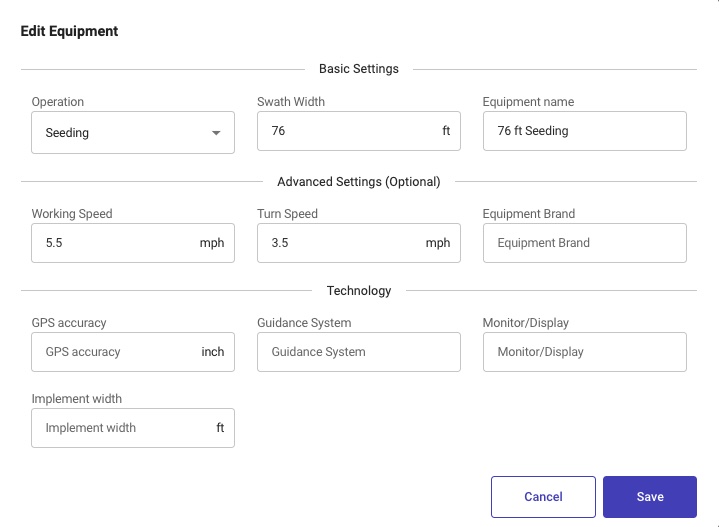

  12. Optional: "Edit Equipment" allows you to edit the equipment specific details used during the Path Plan generation.  The option to edit the equipment is shown when a piece of equipment is available for the selected operation type.

  13. Click Create Path Plans

  14. Once the Plans have been generated they will display all fields for review.
    - At this point all plans have been saved to your Plans list.

  15. (Optional) If you click the "Back" button it will ask if you would like to keep or discard the plans.
